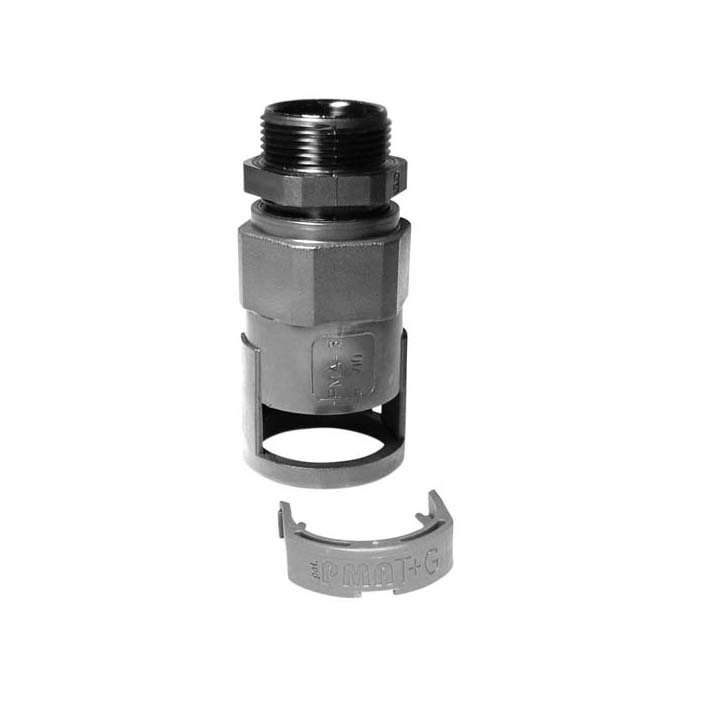

Straight conduit-connector with strain relief IP68 Metric
- For machine and plant construction for separation of damp and dry areas.
- Specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-resistant connection to PMAFLEX conduits
- Easy installation.
- High conduit pull-out strength.
- Integrated strain relief optimally holds and seals cables.
- If several conductors are used with the connector multiple sealing inserts should be considered.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- M16x1,5 (1)
- M20x1,5 (2)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- 5 - 10 (1)
- 6 - 12 (1)
- 10 - 14 (1)
- 13 - 18 (1)
- 18 - 25 (1)
- 22 - 32 (1)
- 30 - 38 (1)
- 34 - 44 (1)
- NW 12 (2)
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
- NW 36 (1)
- NW 48 (2)

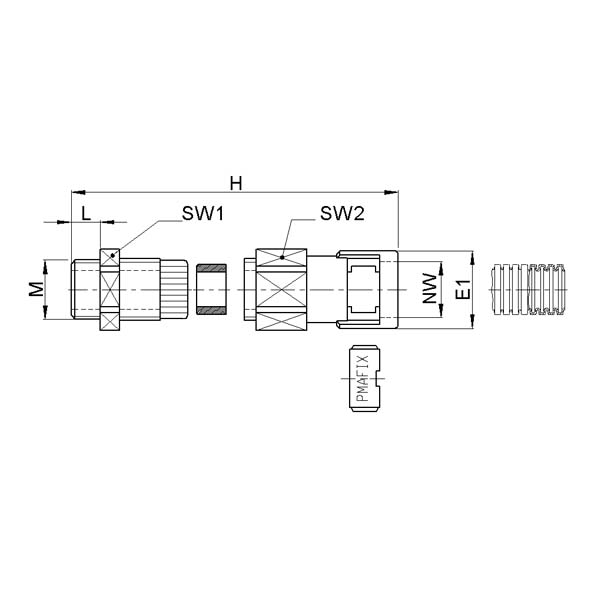

| Article no. | Connection thread | Conduit size | For cable Ø mm | L mm | H mm | SW1 mm | SW2 mm | E1 mm | Pcs/pack |
| BVNZ-M162S | M16x1,5 | NW 12 | 5 - 10 | 8 | 61,5 | 22 | 22 | 24 | 50 |
| BVNZ-M202S | M20x1,5 | NW 12 | 6 - 12 | 8 | 62 | 24 | 24 | 27 | 50 |
| BVNZ-M207S | M20x1,5 | NW 17 | 10 - 14 | 8 | 71,5 | 24 | 24 | 29.5 | 50 |
| BVNZ-M253S | M25x1,5 | NW 23 | 13 - 18 | 8 | 81,0 | 29 | 36 | 37 | 30 |
| BVNZ-M329S | M32x1,5 | NW 29 | 18 - 25 | 10 | 85,0 | 36 | 42 | 46 | 20 |
| BVNZ-M406S | M40x1,5 | NW 36 | 22 - 32 | 10 | 116,5 | 46 | 55 | 60 | 20 |
| BVNZ-M508S | M50x1,5 | NW 48 | 30 - 38 | 12 | 120,5 | 55 | 65 | 66 | 10 |
| BVNZ-M638S | M63x1,5 | NW 48 | 34 - 44 | 12 | 120,5 | 68 | 70 | 75.5 | 10 |
Material:
Polyamide PA6
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Tesnit (asbestos-free)
Ingress protection:
IP68 stat. / IP67 dyn. / IP68 - 5 bar at the cable
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
