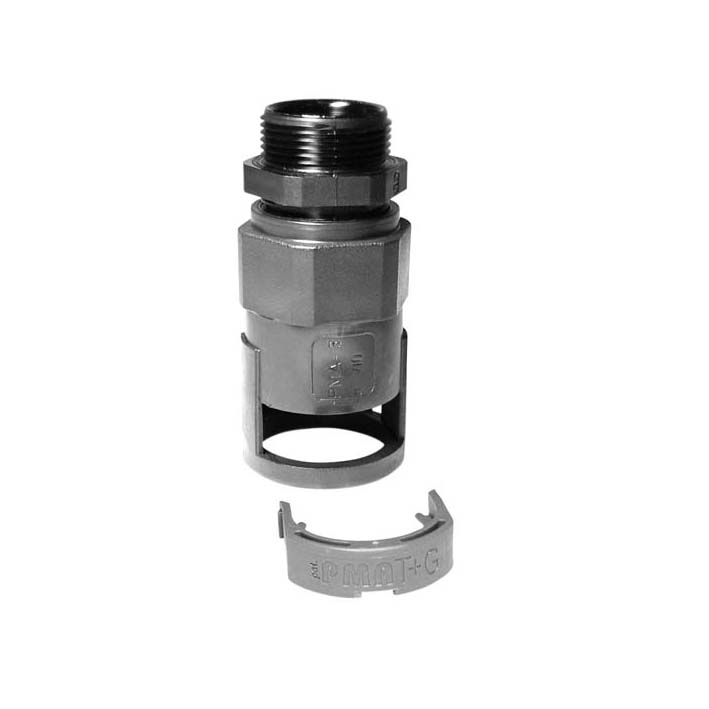

Straight conduit-connector with strain relief IP68 PG
- For machine and plant construction for separation of damp and dry areas.
- Specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-resistant connection to PMAFLEX conduits
- Easy installation.
- High conduit pull-out strength.
- Integrated strain relief optimally holds and seals cables.
- If several conductors are used with the connector multiple sealing inserts should be considered.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- PG9/15,2 (1)
- PG11/18,6 (1)
- PG13,5/20,4 (1)
- PG16/22,5 (2)
- PG21/28,3 (1)
- PG29/37,0 (1)
- PG36/47,0 (1)
- PG48/59,3 (1)
- 4 - 8 (1)
- 5 - 10 (1)
- 6 - 12 (1)
- 10 - 14 (2)
- 13 - 18 (1)
- 18 - 25 (1)
- 22 - 32 (1)
- 34 - 44 (1)
- NW 10 (1)
- NW 12 (2)
- NW 17 (1)
- NW 23 (2)
- NW 29 (1)
- NW 36 (1)
- NW 48 (1)

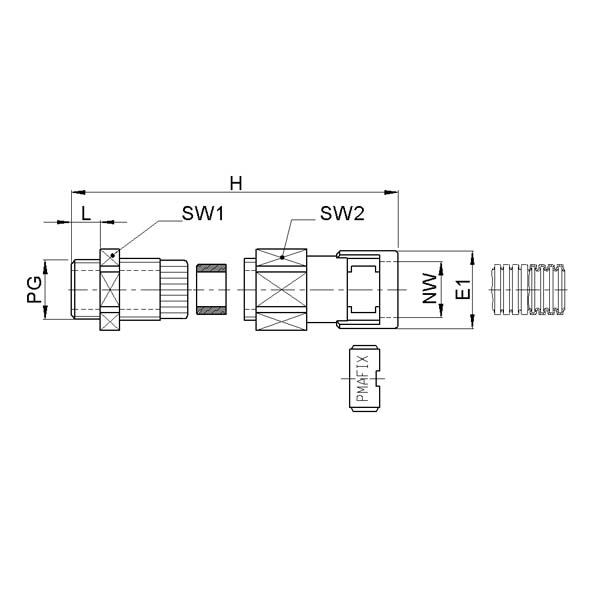

| E-number | Article no. | Connection thread | Conduit size | For cable Ø mm | L mm | H mm | SW1 mm | SW2 mm | E1 mm | Pcs/pack |
| 1410360 | BVNZ-P090S | PG9/15,2 | NW 10 | 4 - 8 | 8 | 53,0 | 19 | 19 | 20 | 50 |
| 1410361 | BVNZ-P112S | PG11/18,6 | NW 12 | 5 - 10 | 8 | 59,0 | 22 | 22 | 24 | 50 |
| - | BVNZ-P132S | PG13,5/20,4 | NW 12 | 6 - 12 | 9 | 62,0 | 24 | 24 | 24 | 50 |
| 1410362 | BVNZ-P167S | PG16/22,5 | NW 17 | 10 - 14 | 10 | 72,0 | 27 | 27 | 30 | 50 |
| - | BVNZ-P163S | PG16/22,5 | NW 23 | 10 - 14 | 10 | 79,0 | 27 | 27 | 38 | 30 |
| 1410363 | BVNZ-P213S | PG21/28,3 | NW 23 | 13 - 18 | 12 | 82,0 | 33 | 36 | 38 | 30 |
| 1410364 | BVNZ-P299S | PG29/37,0 | NW 29 | 18 - 25 | 11 | 85,0 | 42 | 42 | 44 | 20 |
| 1410365 | BVNZ-P366S | PG36/47,0 | NW 36 | 22 - 32 | 13 | 106,0 | 53 | 55 | 53 | 20 |
| - | BVNZ-P488S | PG48/59,3 | NW 48 | 34 - 44 | 14 | 112,0 | 63 | 70 | 65 | 10 |
Material:
Polyamide PA6
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Tesnit (asbestos-free)
Ingress protection:
IP68 stat. / IP67 dyn. / IP68 - 5 bar at the cable
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
