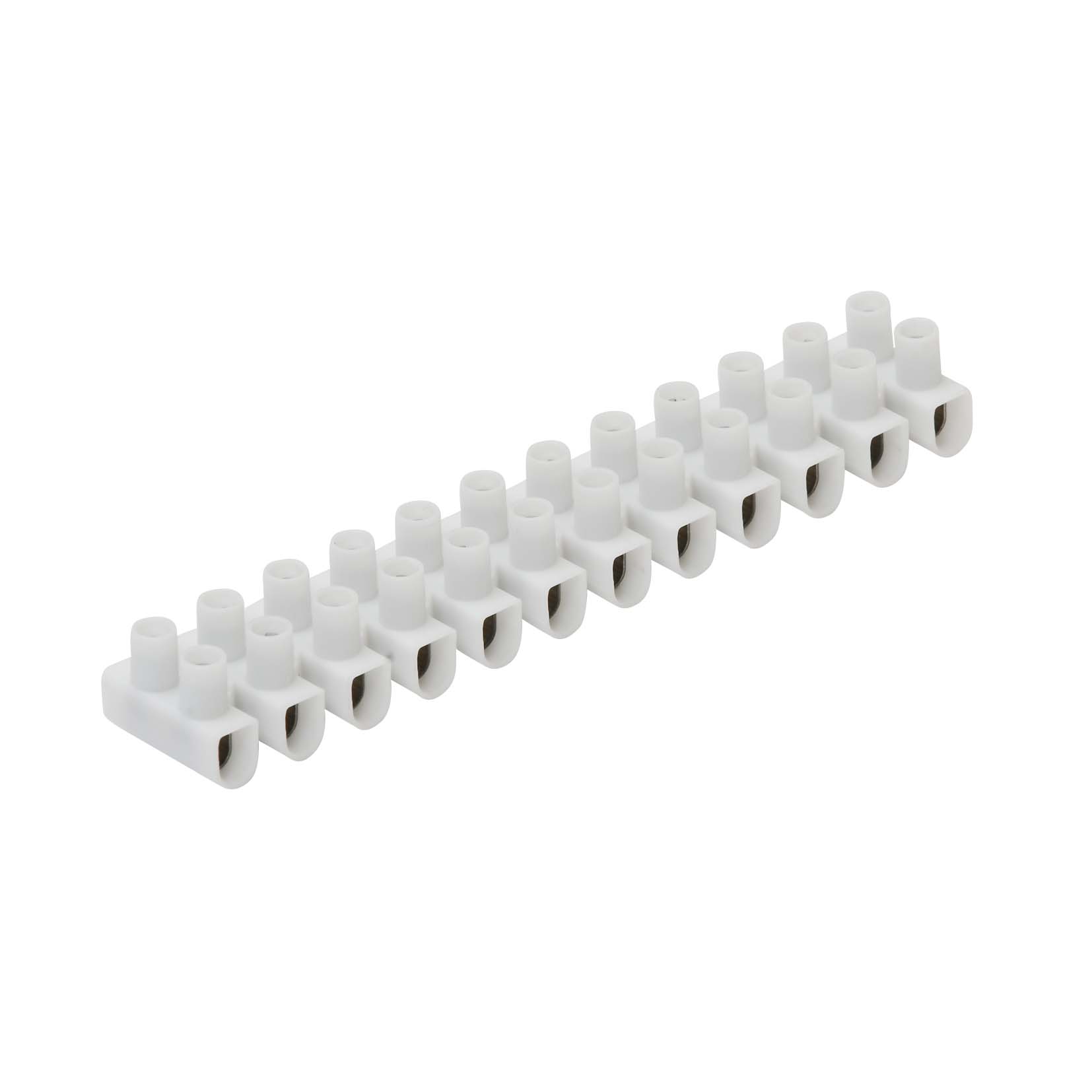

Connector Strip Polypropelene 12-pole

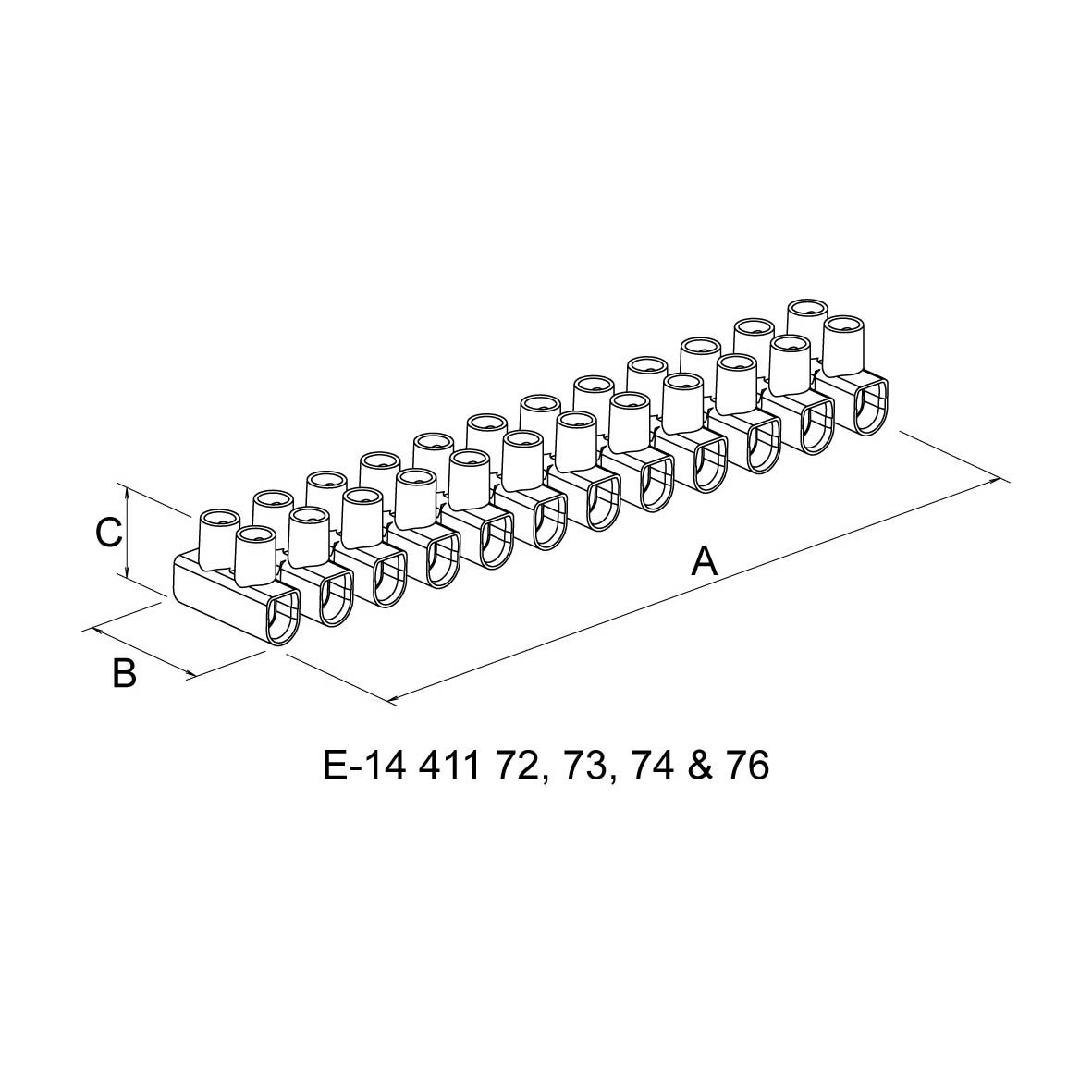

| E-number | Cable cross section | A mm | B mm | C mm | Pcs/pack |
| 1441172 | 1-4 mm² | 94.9 | 16,6 | 13 | 10 |
| 1441173 | 1,5-6 mm² | 116.5 | 18,9 | 14,9 | 10 |
| 1441174 | 2,5-10 mm² | 133.8 | 17,3 | 23,4 | 10 |
| 1441176 | 4-16 mm² | 174.5 | 20,7 | 25 | 10 |

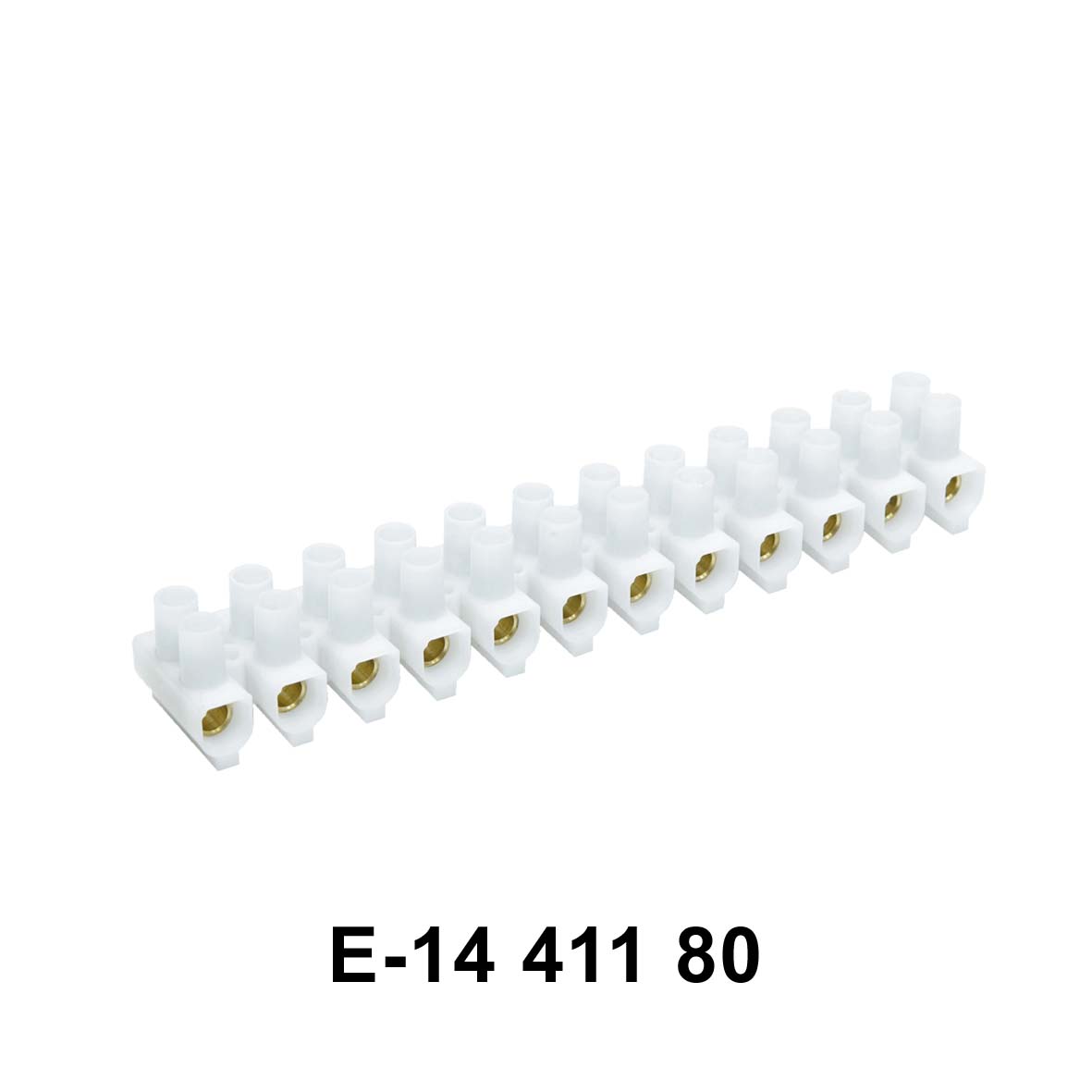

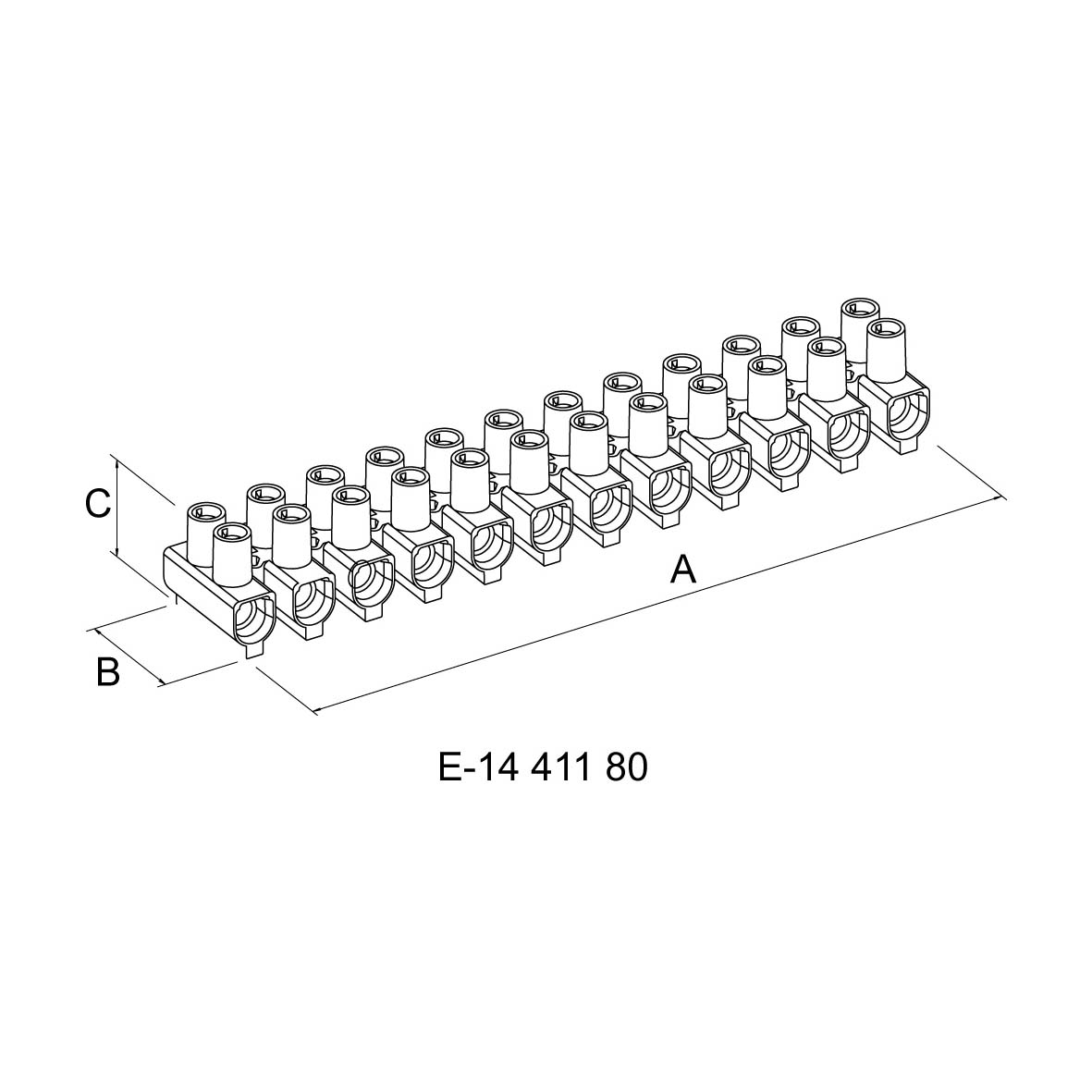

| 1441180 | 10-25 mm² | 187.3 | 28 | 30 | 10 |
Rated voltage:
450V
Material Terminal housing:
Polypropylene
Material insert:
Tinned steel (E-1441180 Brass)
Material Screws:
Galvanized steel
Temperature range:
T80
Colour:
RAL 9010
