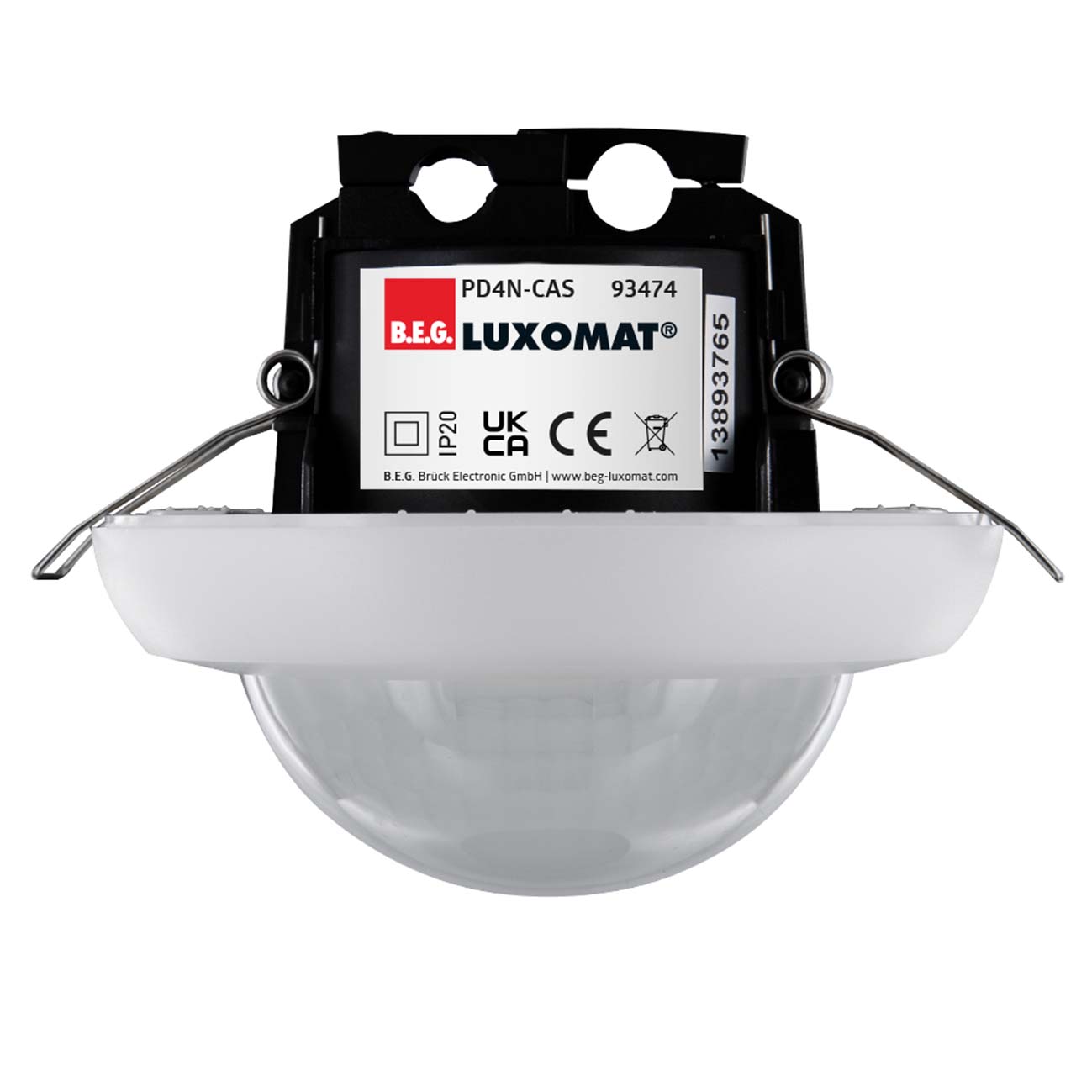

PD4N-CAS
For larger areas
- Casambi-enabled occupancy detector
- Mixed light measurement with internal and external light sensor
- Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app
- Functions adjustable via Casambi app
- Application examples: Entrance halls, Corridors/Hallways, Open-plan offices, Conference rooms, Classrooms/Seminar rooms, Sports halls/ Storage rooms
Supply voltage:
230V AC ±10% / 50Hz
Power consumption:
approx. 0,5W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-5°C....+45°C
Ingress protection:
IP20
Protection category:
II
Light values:
1 - 4000 Lux

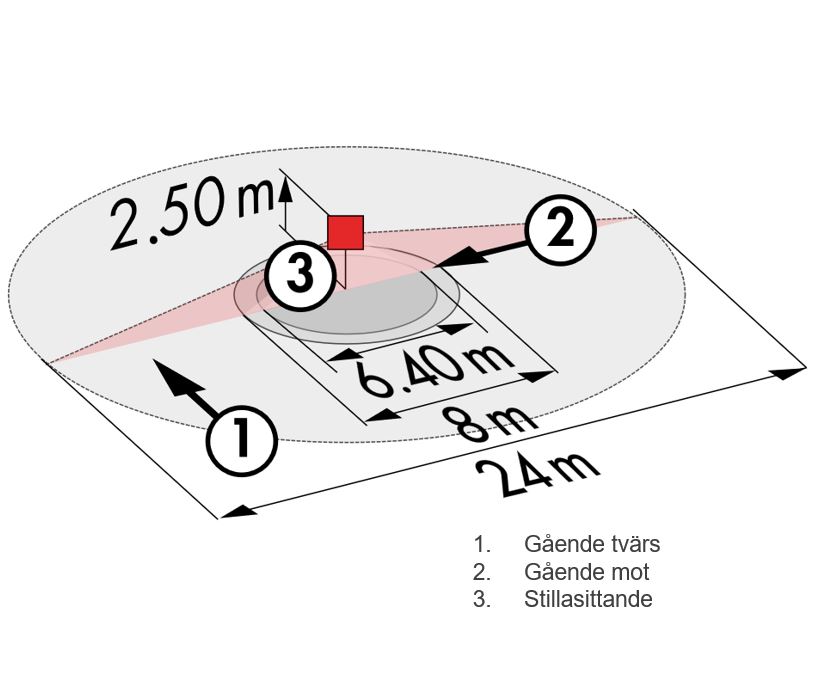

Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m
seated 6.40m
tangential 24m
radial 8m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
1 - 60min.
Halogen-Free:
Yes

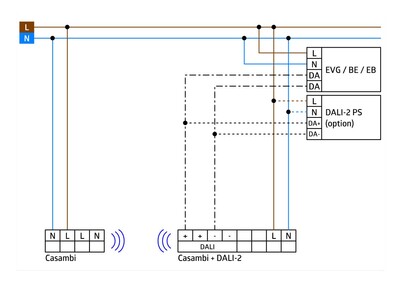

Wiringdiagrams
![](/storage/ma/c6fcb622f31b48d3ac527c7ff387ca75/5218e45f51c14f4599ff202dc1dba1a7/400-284-0-jpg.Jpeg/A140AB6C74D8ACFC328D9A073E4536BA76B99047/KS_PD4N-CAS.jpeg)
