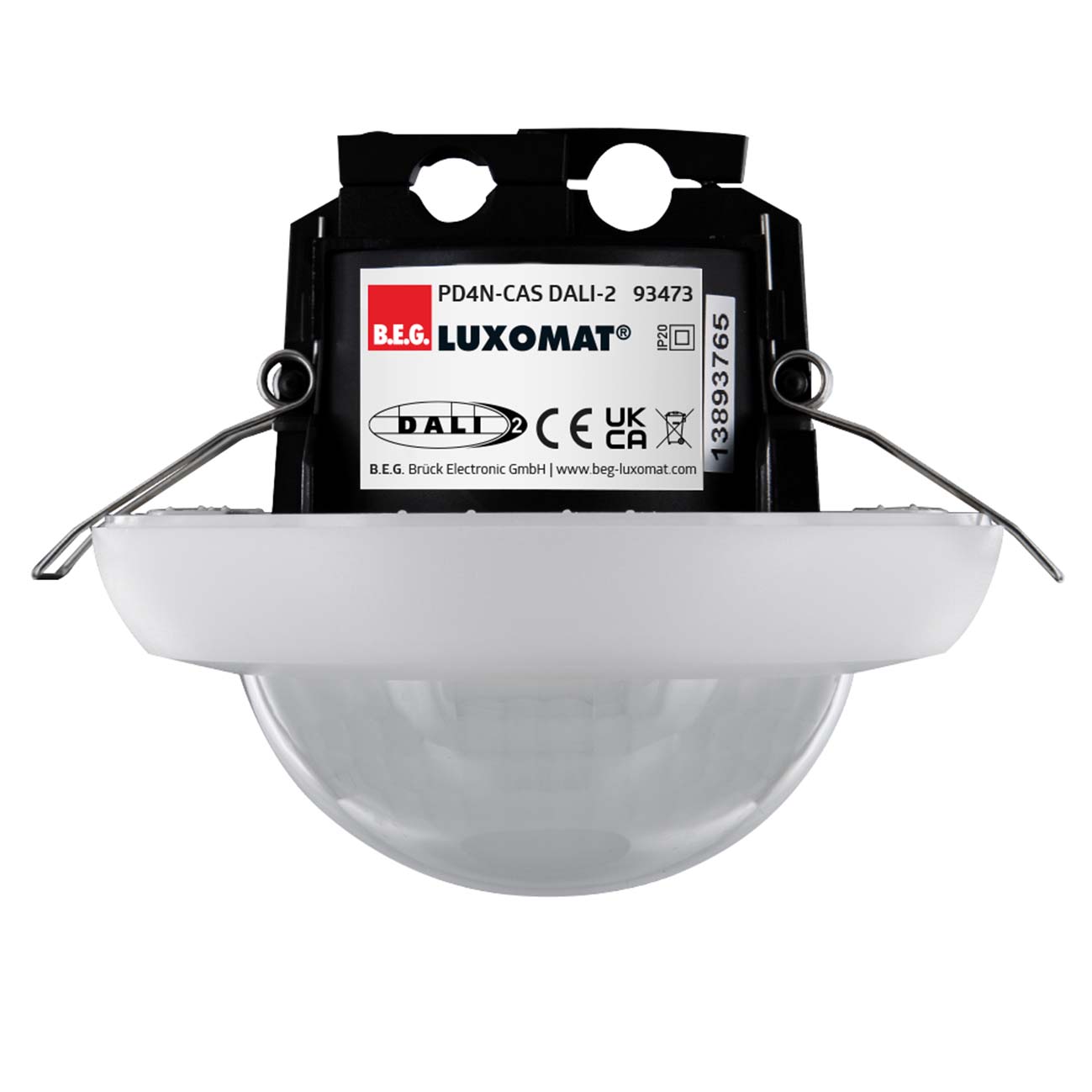

PD4N-CAS DALI-2
For larger areas with integrated DALI-2 power supply
- Casambi-enabled occupancy detector
- DALI-2 interface for controlling digital dimmable ECGs in broadcast/multicast mode
- Mixed light measurement with internal and external light sensor
- Adjustment of the reflection factor
- Functions adjustable via Casambi app
- Application examples: Entrance halls, Corridors/Hallways, Open-plan offices, Conference rooms, Classrooms/Seminar rooms, Sports halls/ Storage rooms
Supply voltage:
230V AC ±10% / 50Hz
Power consumption:
approx. 0,5W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-5°C....+45°C
Ingress protection:
IP20
Protection category:
II
Light values:
1 - 4000 Lux
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m
seated 6.40m
tangential 24m
radial 8m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
1 - 60min.
Halogen-Free:
Yes
Wiringdiagrams
