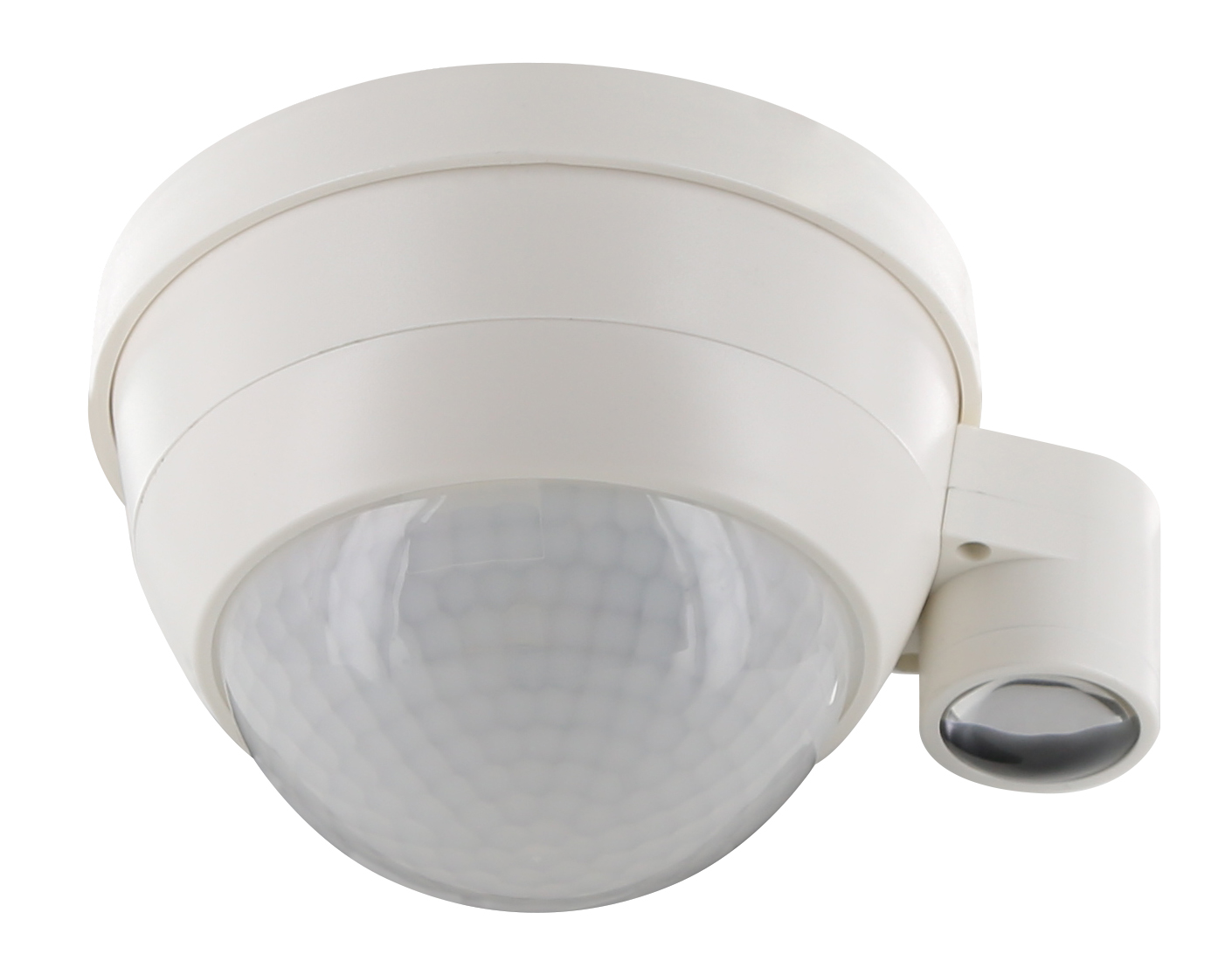

PD4-DALILINK-GH

Create product sheet (PDF)
Questions/Order
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
DALI LINK Bluetooth-app
Light values:
10 - 2000 Lux
Extension of the detection area:
with detector in slave mode

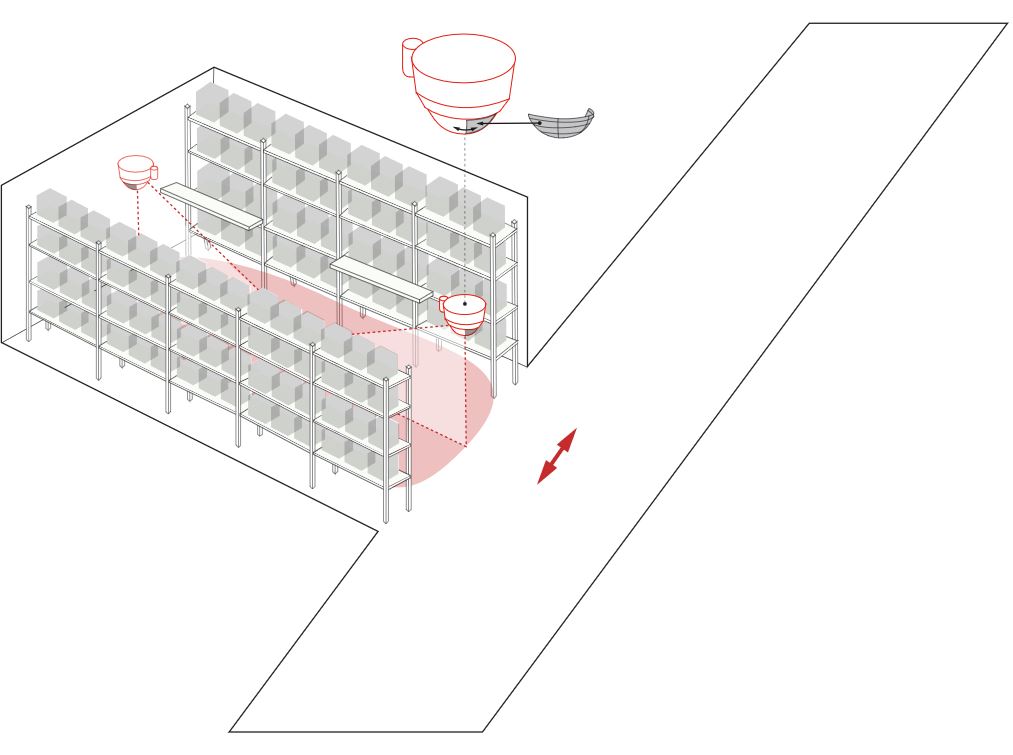

Area of coverage:
circular 360°
Range of coverage:
H 14m / T = 18°C:
tangential r 22m / Ø 44m
tangential r19m / Ø 30m
Recommended height for mounting:
up to 14m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
1 - 120min.
Channel 1:
For light control depending on brightness.
Halogen-Free:
Yes
