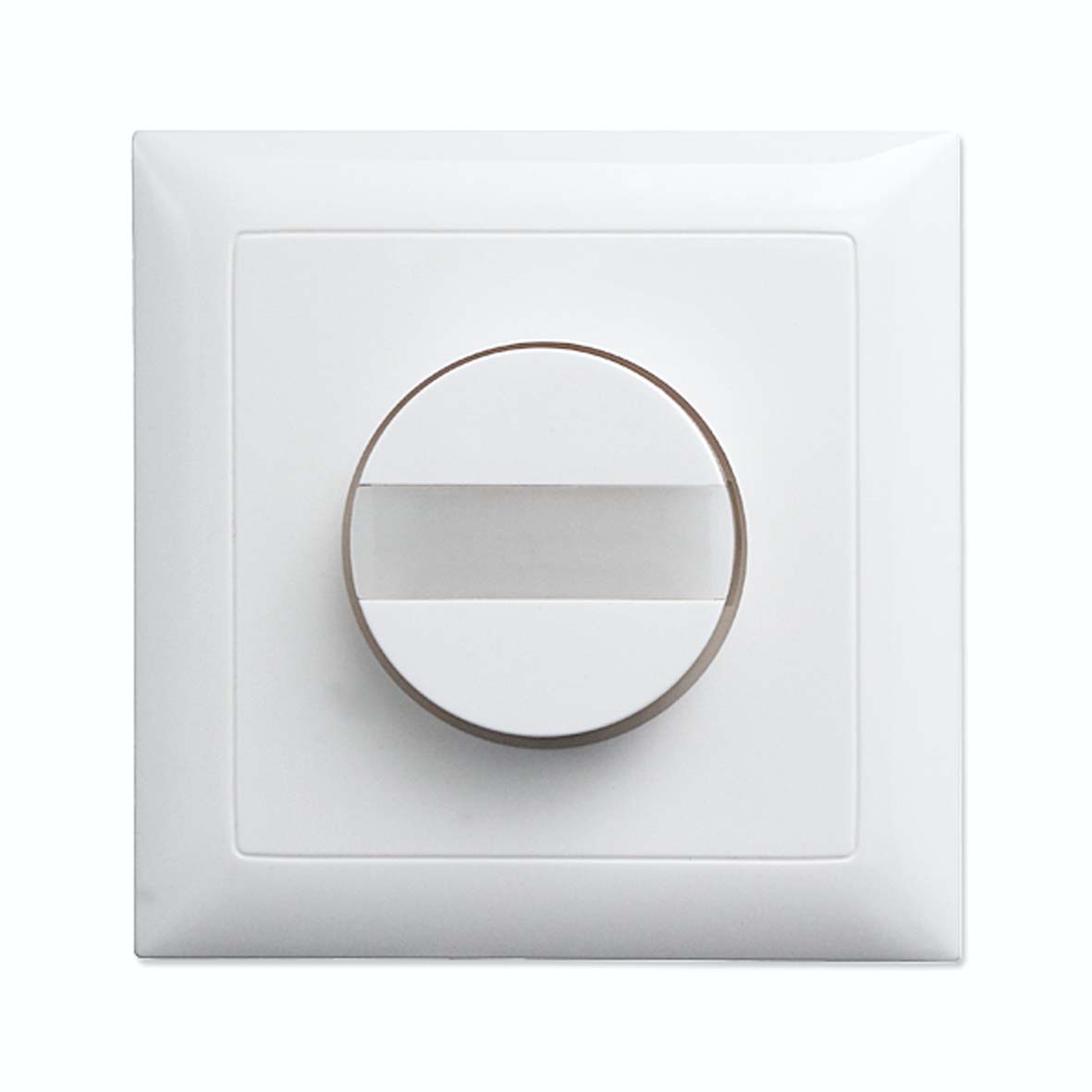

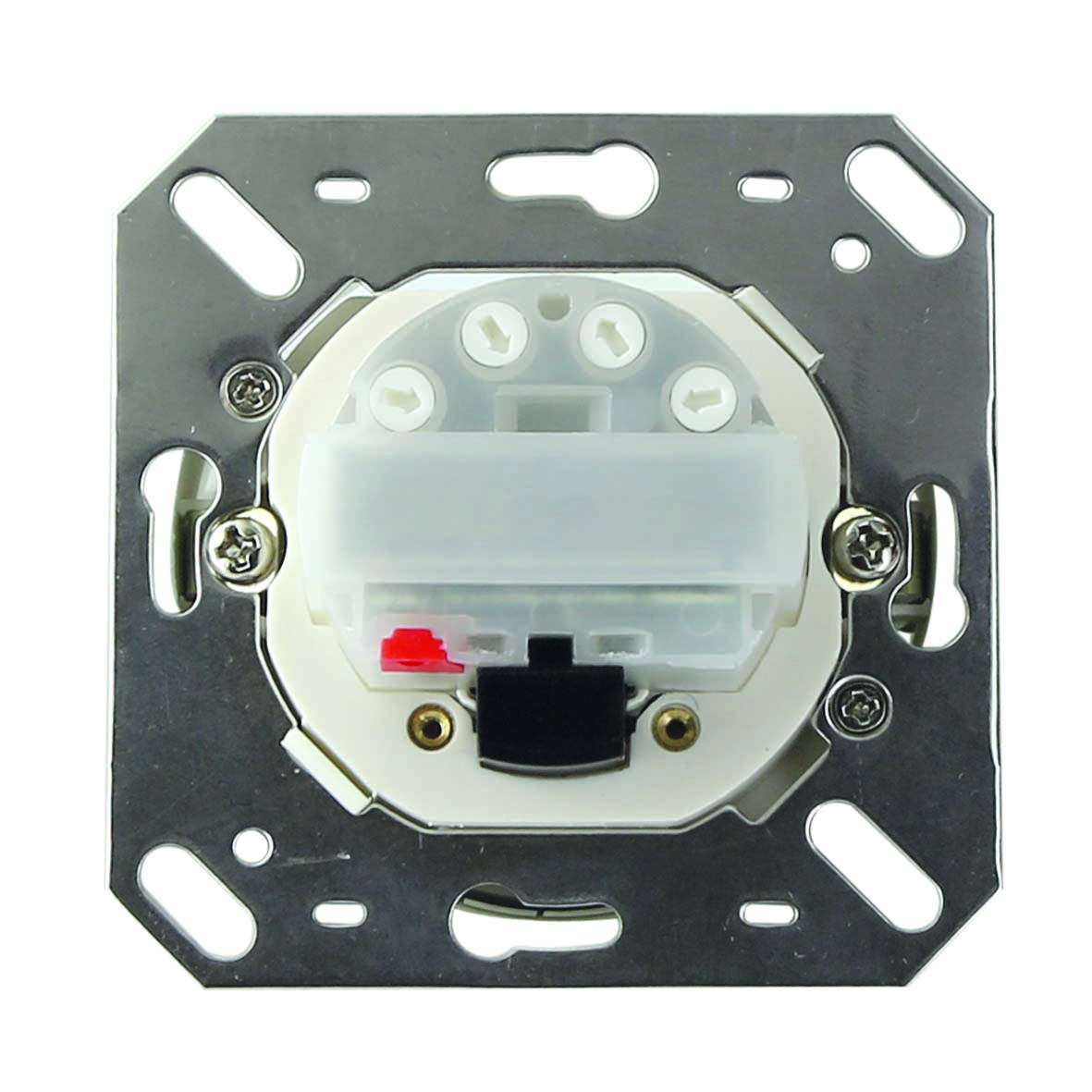

Indoor 140-L
Supply voltage:
110-240VAC / 50-60Hz
Power consumption:
approx. 0.4 W
approx. 0.8 W with nightlight
approx. 0.8 W with nightlight
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers and DIP switches
Light values:
Potentiometer 10 - 2000 Lux
Extension of the detection area:
with detector in slave mode

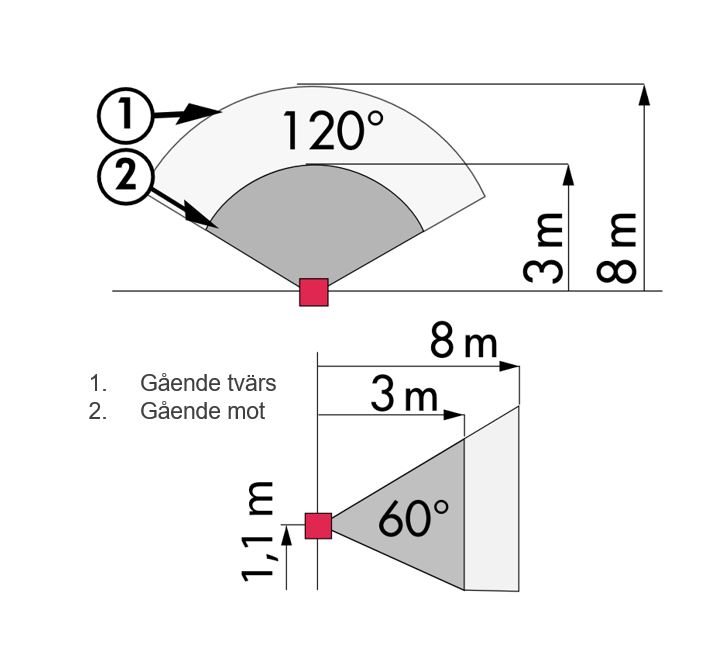

Area of coverage:
120°
Range of coverage:
T = 18°C:
tangential max. r 8m
radial max. r 3m
tangential max. r 8m
radial max. r 3m
Recommended height for mounting:
1,1m (max. 1,2m)
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
15sec - 30min
Channel 1:
For light control depending on brightness.
Relay:
NOC/with pre-travel tungsten contact
Switching capacity:
2000 W, cos φ = 1
1000 VA, cos φ = 0,5
max. inrush current Ip (20ms) = 125 A
1000 VA, cos φ = 0,5
max. inrush current Ip (20ms) = 125 A
Halogen-Free:
Yes
