Supply voltage:

110-240VAC / 50-60Hz

Power consumption:

approx. 0,5W

Material Enclosure:

Polycarbonate, UV-resistant

Temperature range:

-25°C....+50°C

Protection category:

II

Settings:

Potentiometers, DIP switches and remote control

Light values:

Remote control 20 - 1000 Lux,
Potentiometer 10 - 2000 Lux

Extension of the detection area:

with slave detector

Area of coverage:

circular 360°

Range of coverage:

Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m

Recommended height for mounting:

2,5m

Light measurement:

Mixed light, daylight + artificial light

Channel 1:

For lightning control, 1x µ-contact
NO contact with tungsten pre-make contact

Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0,5
300W LED
max. inrush current Ip (20ms) = 165 A
max. inrush current lp (200 µs) = 800 A

Follow up time:
15 sec - 30 min, Puls

Switch-on threshold:
10 - 2000 lux

Channel 2:

HVAC control potential-free (dry)
1x µ-contact, dry NO contact

Switching power:
3 A (230 V), cos φ = 1

Follow-up time:
5 min - 120min Alarm pulse, Pulse

Dimensions:

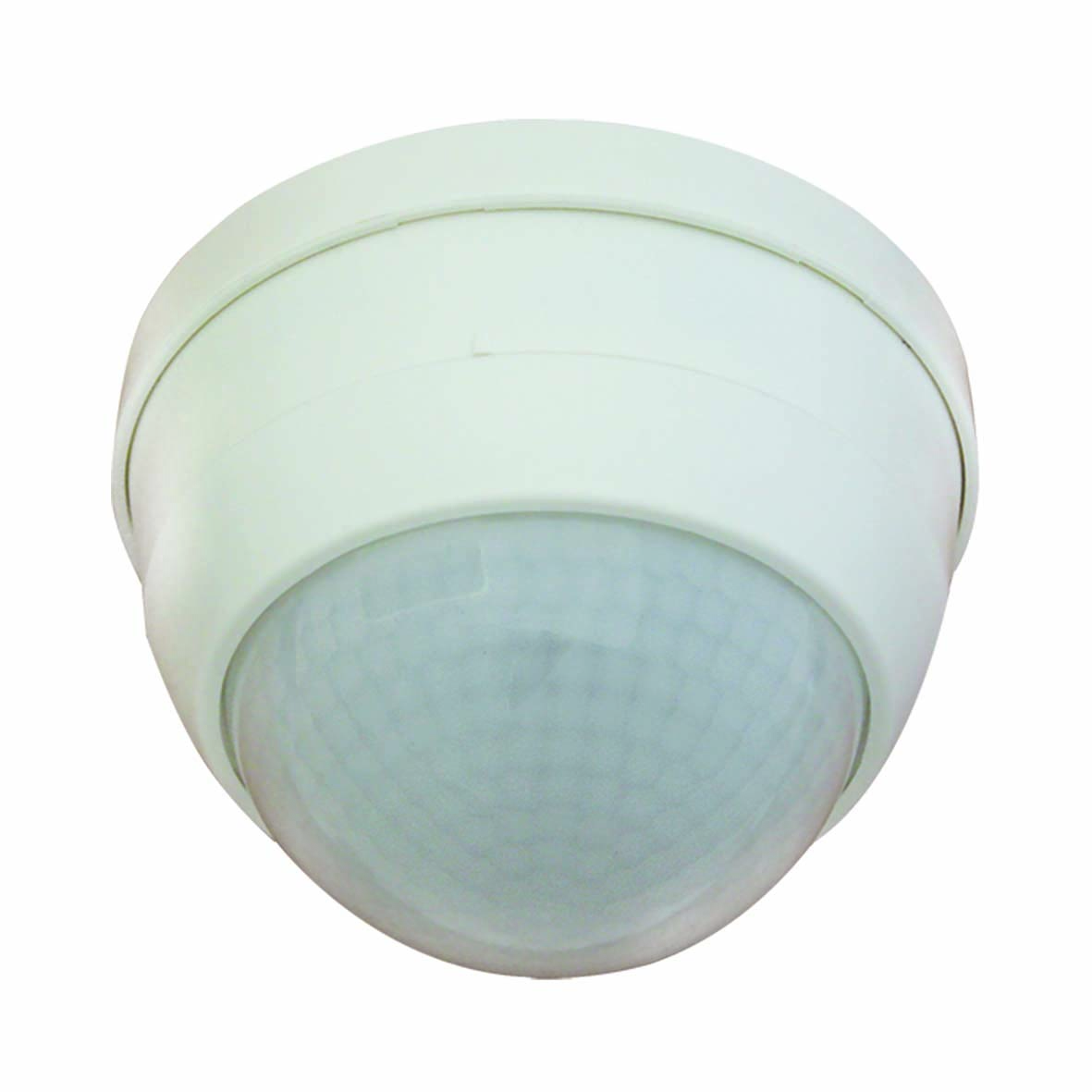

H x Ø mm: UTP 76 x 101, TAK 103 x 97, INF 70 x 104

Visible portion when built into ceiling:

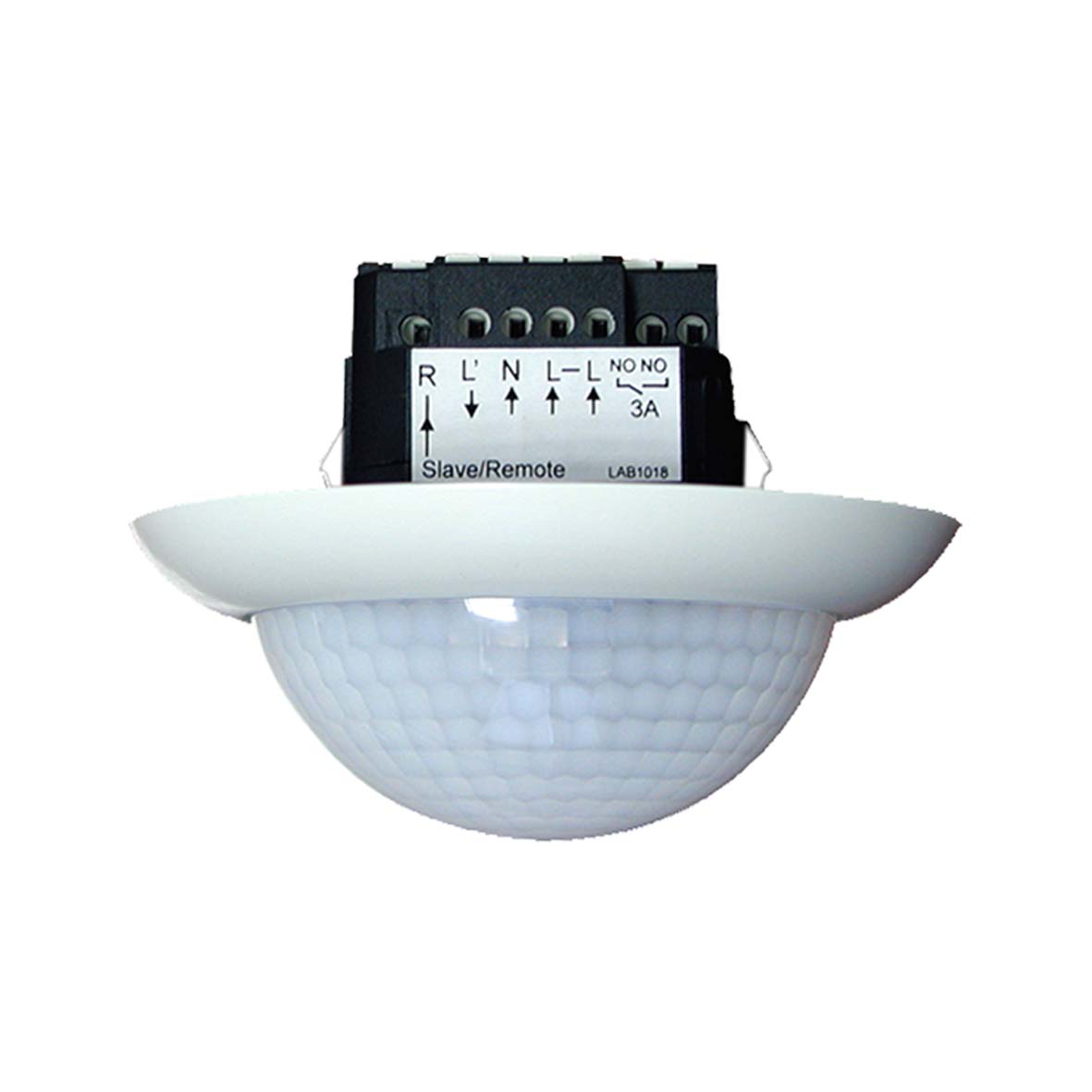

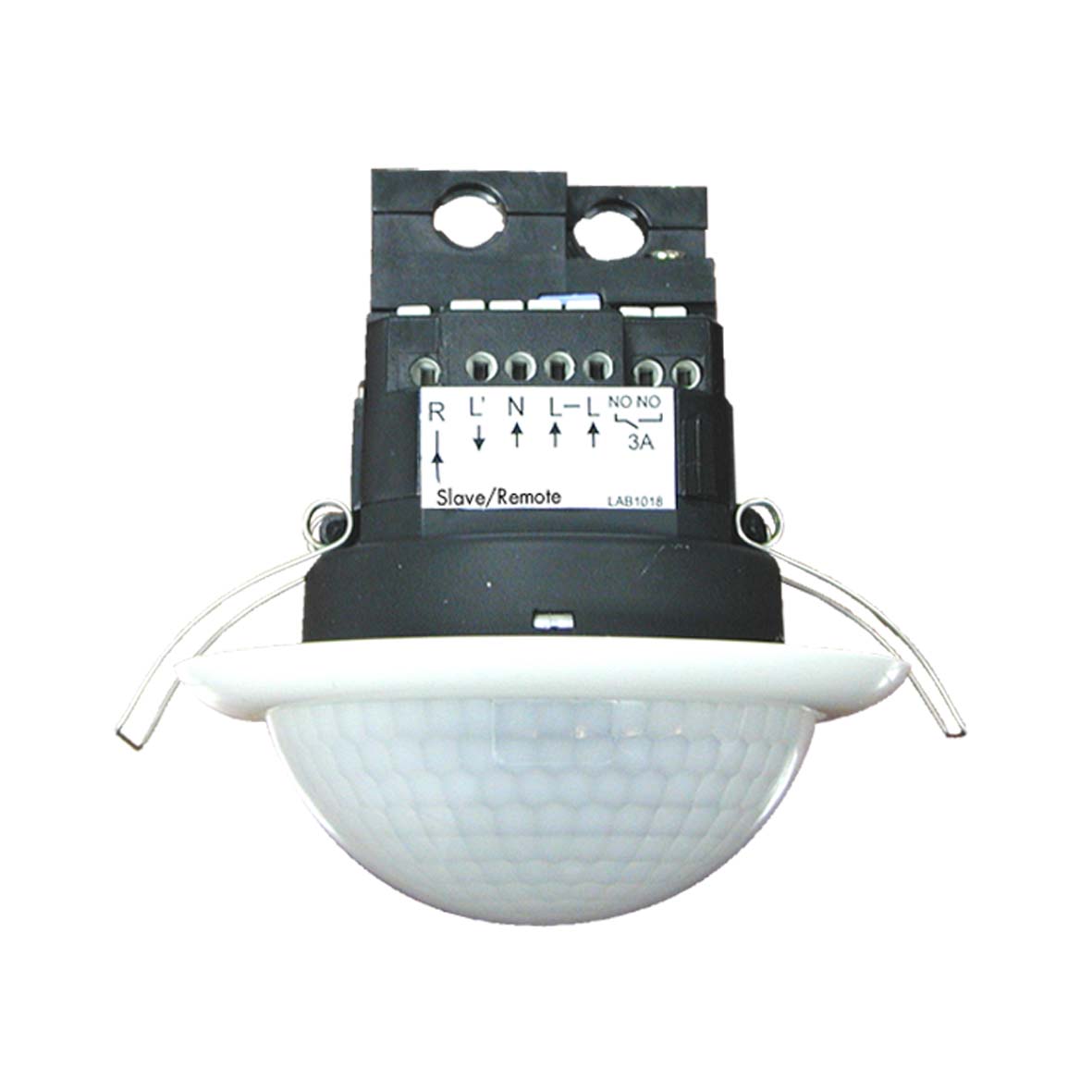

H x Ø mm: TAK 30 x 97, INF 40 x 104

Push button:

1 push button

Halogen-Free:

Yes
