- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)

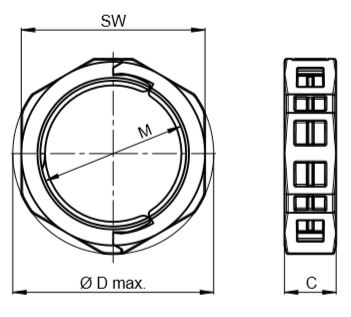

| Article no. | Internal thread | C mm | D Ø mm | SW mm | Pcs/pack |
| BLN-M16 | M16x1,5 | 8 | 24 | 22 | 50 |
| BLN-M20 | M20x1,5 | 8 | 29 | 26 | 50 |
| BLN-M25 | M25x1,5 | 9 | 35 | 32 | 10 |
| BLN-M32 | M32x1,5 | 12 | 45 | 41 | 10 |
| BLN-M40 | M40x1,5 | 15 | 55 | 50 | 10 |
| BLN-M50 | M50x1,5 | 15 | 66 | 60 | 10 |
Material:
Polyamide 6
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Flame class:
UL94 HB
Halogen-Free:
Yes
